Open-source post-quantum cryptography serverless CA

A guide on setting up a post-quantum cryptography serverless CA, also published as a blog post.

Alt text

Introduction

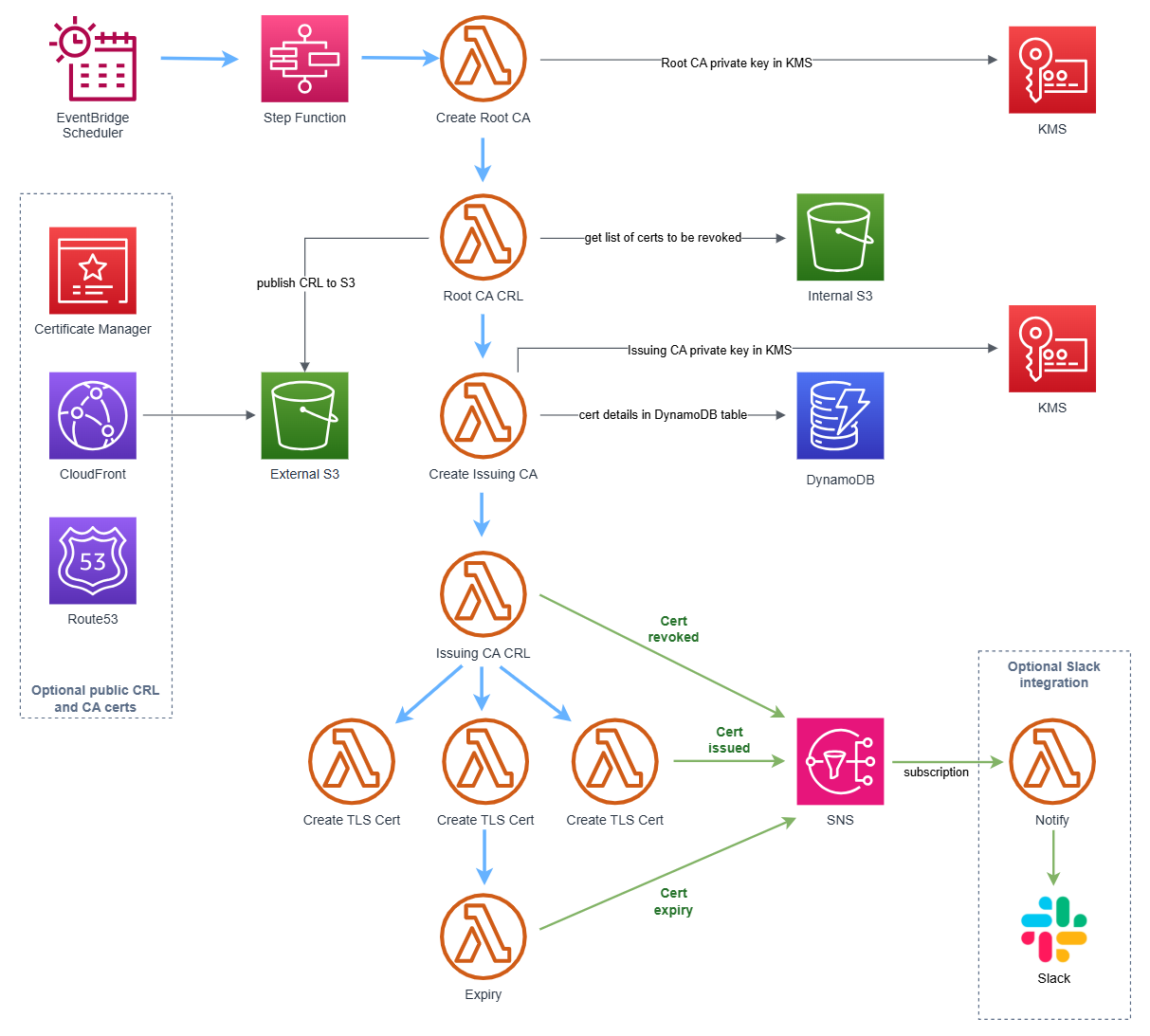

In 2024, we open-sourced our serverless private cloud Certificate Authority and public Terraform Module.

We've since released a major new version with post-quantum cryptography support, using the NIST approved ML-DSA algorithm.

Post-quantum Cryptography

US Government bodies including the White House and NSA have mandated implementation of post-quantum cryptography from 2027 to 2035.

The serverless CA now supports fully post-quantum CA hierarchies using ML-DSA (Module-Lattice Digital Signature Algorithm), NIST's primary post-quantum signature standard, defined in FIPS 204 with X.509 certificate profile per RFC 9881.

CA hierarchies are a priority for post-quantum migration: CA certificates are long-lived, and their signatures must remain trustworthy against "harvest now, forge later" adversaries with future quantum computers.

Supported algorithms

Choose the ML_DSA_44, ML_DSA_65 or ML_DSA_87 key spec for each CA independently via the root_ca_key_spec and issuing_ca_key_spec Terraform variables.

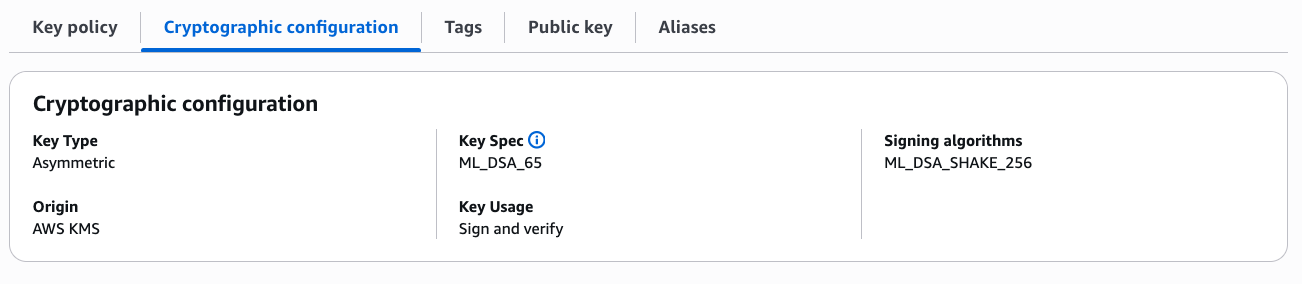

CA private keys are generated and used within AWS KMS FIPS 140-3 Security Level 3 validated HSMs, exactly as for RSA and ECDSA CAs, and cannot be exported. Certificate, CSR and CRL signing uses the KMS ML_DSA_SHAKE_256 signing algorithm with the EXTERNAL_MU message type, so CRLs of any size can be signed despite the 4,096-byte KMS RAW message limit.

Check ML-DSA key spec availability in your target AWS region before deploying.

Alt text

Example deployment

We provide a ml-dsa example which deploys an ML_DSA_65 root CA and ML_DSA_44 issuing CA with a public CRL, via a GitHub Actions workflow.

In this case, it shares an AWS account and Route53 hosted zone with a traditional RSA deployment. Alternatively, the ML-DSA serverless CA can be deployed as completely standalone infrastructure.

Alt text

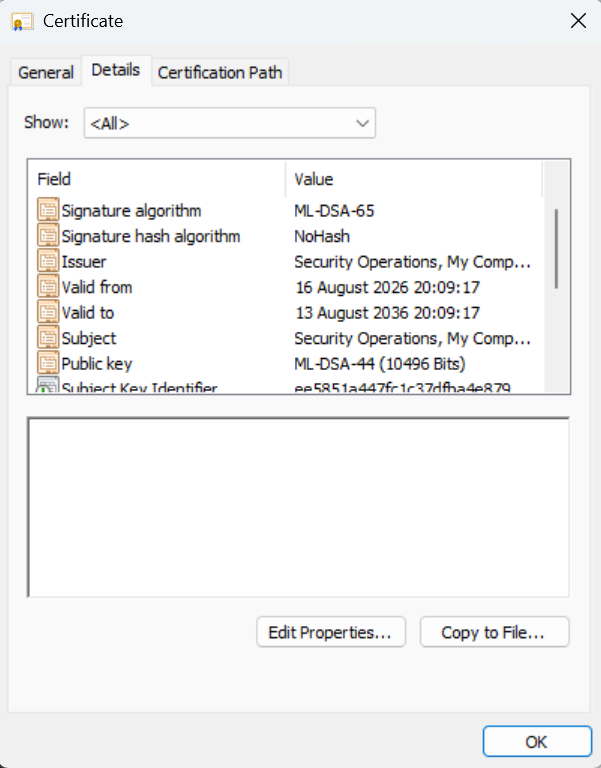

Example CA certificates and CRLs

Locations below are download links for our example ML-DSA deployment:

CA certificates:

CRLs:

Alt text

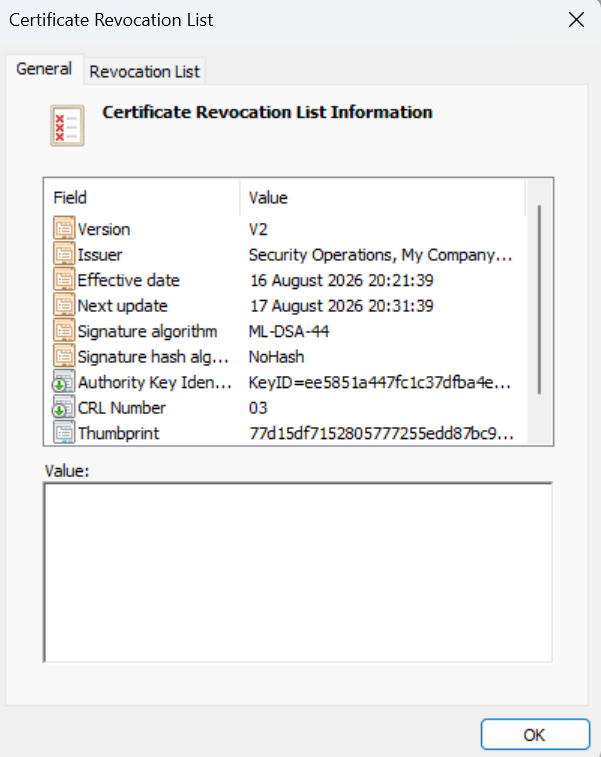

Certificate Revocation Lists

ML-DSA CRLs work identically to classical CRLs, signed by the CA private key in AWS KMS, published on the schedule set by the schedule_expression Terraform variable.

Alt text

Compatibility

Only a limited number of operating systems and applications support ML-DSA as of August 2026, e.g.

  • OpenSSL 3.5+, Java 25+, and Python cryptography 48.0.0+ can verify ML-DSA certificate chains
  • Microsoft Windows 11 (2025 updates onwards) imports and displays ML-DSA certificates
  • AWS KMS has supported ML-DSA signatures since June 2025
  • AWS announced ML-DSA support for IAM Roles Anywhere March 2026

However, as of August 2026:

  • Apple macOS Keychain doesn't support ML-DSA certificates and errors on import
  • AWS Application Load Balancer and API Gateway don't support ML-DSA for mTLS
  • Mainstream web browsers don't accept ML-DSA certificates

ML-DSA is opt-in per CA deployment, so an ECDSA / RSA hierarchy can run in parallel, as in the example deployment above.

Create ML-DSA Certificate Authority

Follow the instructions in the Getting Started guide, in a stand-alone AWS account, with the addition of two additional Terraform variables when calling our Terraform module:

root_ca_key_spec    = "ML_DSA_65"
issuing_ca_key_spec = "ML_DSA_44"

If you're sharing the account and hosted zone with an existing CA deployment, extra variables are required, as used in our example, and detailed in the relevant FAQ.

Apply Terraform.

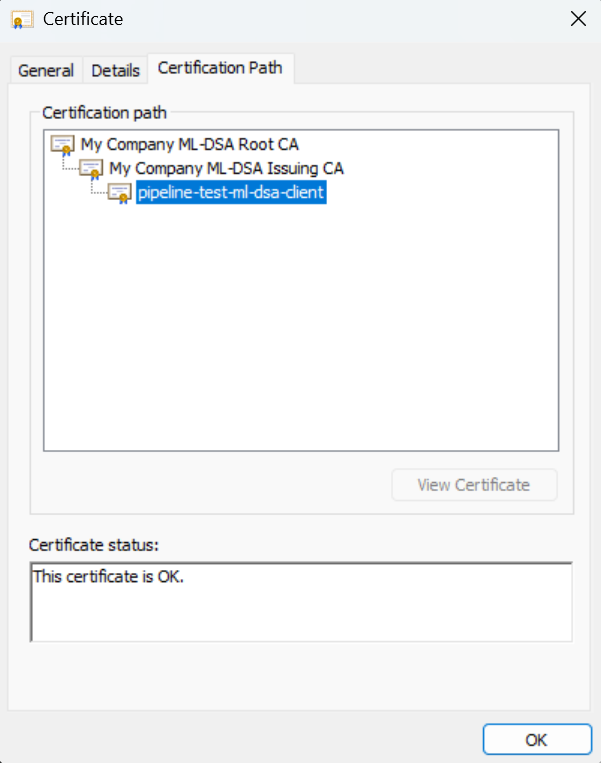

Test ML-DSA Certificate Authority

Issue a fully post-quantum client certificate from your ML-DSA CA, with AWS credentials for your CA AWS account:

git clone https://github.com/serverless-ca/terraform-aws-ca.git
cd terraform-aws-ca
pip install -r utils/requirements.txt
python utils/client-cert.py --profile <your-aws-profile> --keyalgo ml-dsa-44 --project pqc
  • ML-DSA-44 key pair is generated locally
  • CSR is signed with the local ML-DSA key and submitted to the tls-cert Lambda function, which issues the certificate signed by the ML-DSA issuing CA
  • --project pqc targets the ML-DSA deployment when more than one CA shares the AWS account, as in the example deployment - omit for an account with a single CA
  • certificate, private key (PKCS8) and CA bundle are written to your local ~/certs directory

Verify the issued certificate with OpenSSL 3.5+:

openssl verify -CAfile ~/certs/ca-bundle.pem ~/certs/client-cert.crt
openssl x509 -in ~/certs/client-cert.crt -text -noout

👏 🎉 🎊 Congratulations, you've set up and tested the open-source serverless CA with post-quantum cryptography 🎆 🌟 🎇

Acknowledgements

This enhancement would not have been possible without the excellent foundation work to develop ML-DSA capability by the AWS KMS team and maintainers of the open-source Python Cryptography project 👏👏👏
